THE MANUFACTURING OF ORGAN BLOWERS AND OTHER HIGH-PRESSURE CENTRIFUGAL FANS

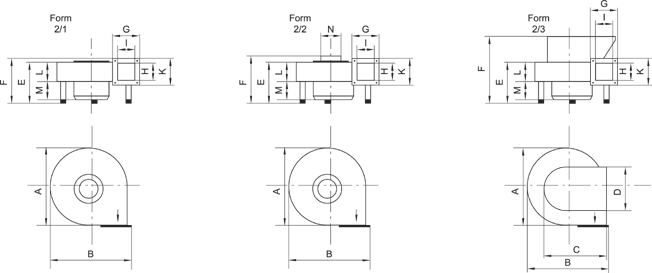

DIMENSIONS FOR MOUNTING OF ORGAN BLOWERS OF TYPE LVM2

3600 rotations/minute 60 Hz
Pressure range: 750-800 Pa
Type: 1-ph.A.C.: 120V
Unit: Inch (in)
TYPE
LVM2/1-003-075
LVM2/2-003-075
LVM2/3-003-075
LVM2/1-005-080
LVM2/2-005-080
LVM2/3-005-080
A 10-7/16" 10-7/16" 10-7/16" 12-5/8" 12-5/8" 12-5/8"
B 11-1/32" 11-1/32" 11-1/32" 13-3/16" 13-3/16" 13-3/16"
C - - 9-7/16" - - 11-1/32"
D - - 7-3/64" - - 7-3/64"
E 5" 5" 5" 6-1/8" 6-1/8" 6-1/8"
F 5-19/32" 5-13/16" 8-7/8" 6-6/8" 6-57/64" 9-7/16"
G 3-1/32" 3-1/32" 3-1/32" 4-1/32" 4-1/32" 4-1/32"
H 1-29/64" 1-29/64" 1-29/64" 2-3/64" 2-3/64" 2-3/64"
I 1-37/64" 1-37/64" 1-37/64" 2-3/4" 2-3/4" 2-3/4"
K 3-1/32" 3-1/32" 3-1/32" 4-1/32" 4-1/32" 4-1/32"
L 2-3/64" 2-3/64" 2-3/64" 3-5/32" 3-5/32" 3-5/32"
M 2-53/64" 2-53/64" 2-53/64" 2-53/64" 2-53/64" 2-53/64"
N - 3-1/32" - - 3-1/32" -
